PAC10power controllers are compact and save installation space in the cabinet. Its wiring is simple and easy to use. Chinese and English liquid crystal display can intuitively display the output parameters and status of the controller. Products are widely used in vacuum coating, glass fiber, tunnel kiln, roller kiln, mesh belt furnace and so on.
● Lightweight design, small size and light weight
● Support true RMS, average value control selection
● It has three operation modes: phase shift, power regulation and fixed cycle, and power regulation and variable cycle.
● With constant α, U, I, P and other control modes
● OLED Chinese/English LCD display
● It has the functions of running time accumulation display and load resistance detection
● Standard modbus RTU communication. Optional Profibus-DP, PROFINET communication gateway
|
Input Main circuit power supply: AC230V、400V, 50/60Hz Control power supply: AC110~240V, 15W, 50/60Hz
Output Rated voltage: 0 ~ 98% of the main circuit power supply voltage (phase shift control) Rated current: 25~450A
Control Operation mode: phase shift trigger, power regulation and fixed period, power regulation and
characteristic Control mode: α、U、I、P Load property: resistive load, inductive load
Performance index Control accuracy: 1% Stability: ≤0.2%
Interface description Analog input: 1 way DC 4 ~ 20mA, 1 way DC0 ~ 5V / 0 ~ 10V
Switch input: 1NO operation allowed (passive) Communication: Standard RS485 communication interface, supporting Modbus RTU communication;Profibus-
DP and Profinet communication gateway can be selected;
|

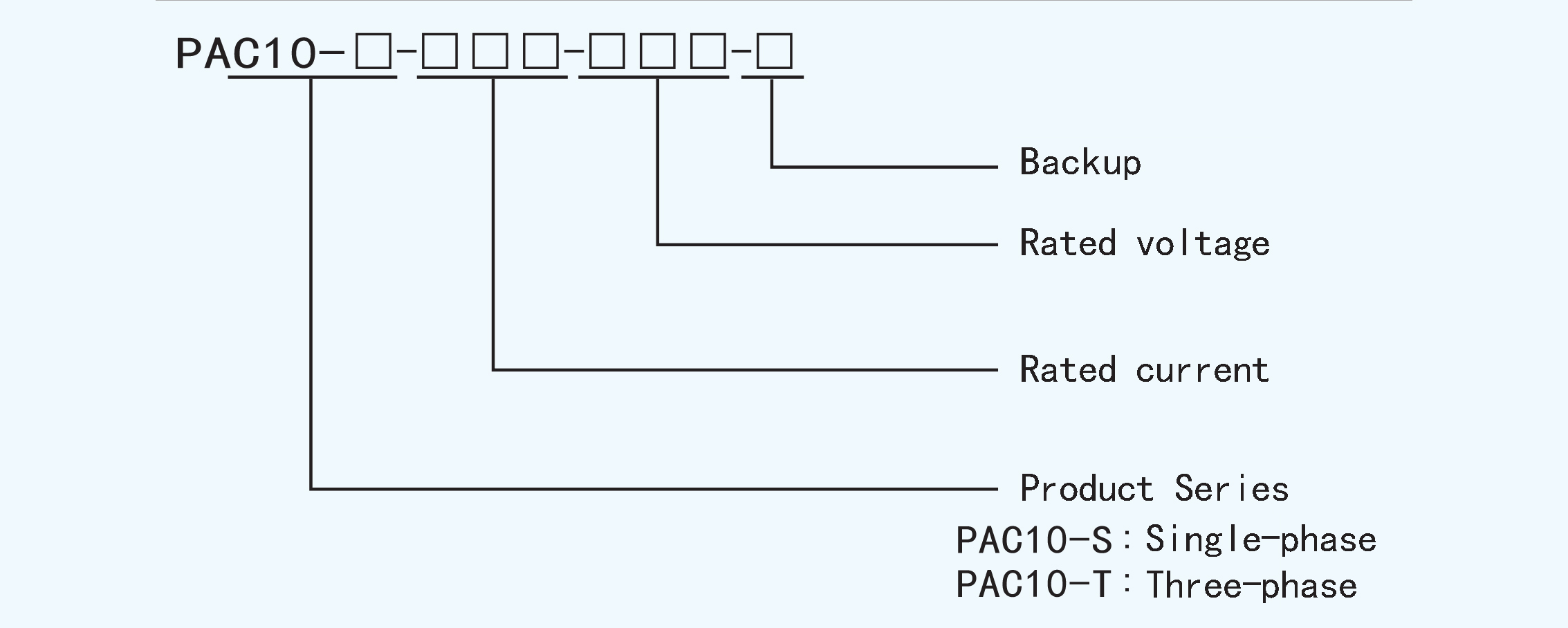

Model Definition
Model
Rated voltage（V）
Rated current（A）
Weight（kg）
Cooling mode
PAC10-S-25
230、400
25
2
Natural cooled
PAC10-S-40
230、400
40
2
PAC10-S-75
230、400
75
3.1
Fan cooled
PAC10-S-100
230、400
100
3.1
PAC10-S-150
230、400
150
3.1
PAC10-S-200
230、400
200
3.1
Model
Rated voltage（V）
Rated current（A）
Weight（kg）
Cooling mode
PAC10-T-25
400
25
4.1
Fan cooled
PAC10-T-40
400
40
4.1
PAC10-T-75
400
75
4.1
PAC10-T-100
400
100
4.1
PAC10-T-150
400
150
4.1
PAC10-T-200
400
200
9.2
PAC10-T-250
400
250
9.2
