Product name |

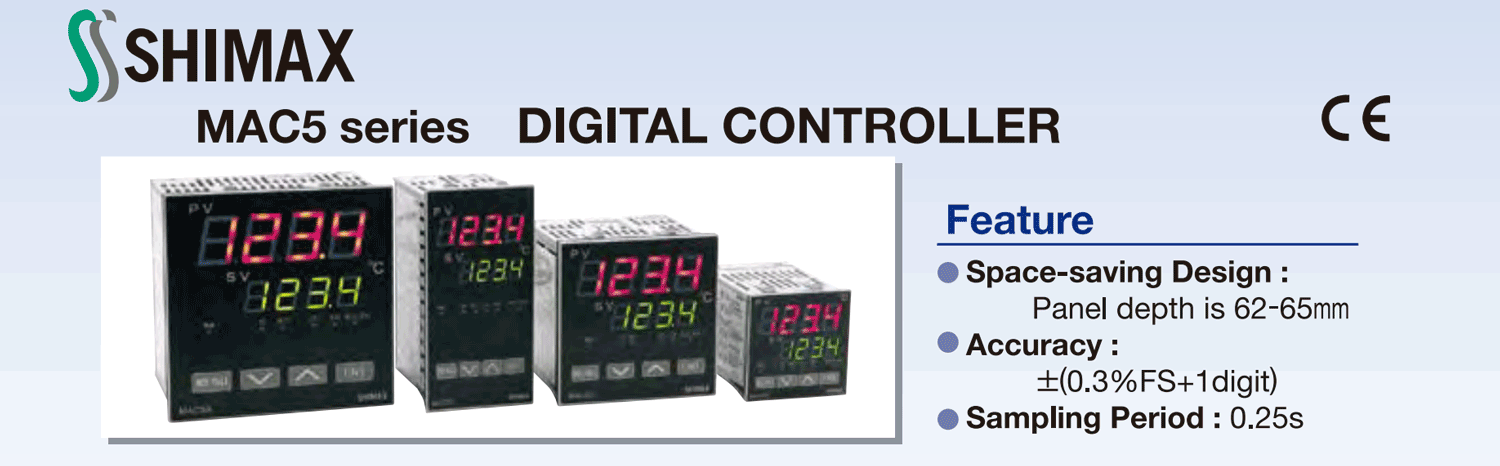

MAC5 series digital controllers |
| Product model |
MAC50A/MAC50B/MAC50C/MAC50D |
|
Power supply |
100-240V ±10% 50/60Hz (24V power supply needs to be customized) |
|
Accuracy |
+(0.25%FS+1digit) |
|
Display range |
-10%-110% of measuring range |
|
Control system |
PID control with an auto tuning function or ON-OFF operation |
|
Sampling Period |
0.25s |
| Input |
Thermocouple、Resistance bulb、Voltage、Current |
|
Control Output |
Contact、Voltage pulse (SSR drive voltage)、Voltage、Current |
|
Use environmental condition |
Temperature :-10~55℃ Humidity:Below 90%RH (no dew condensation) |
|
Power consumption |
100VAC 6VA 200VAC 8VA 240VAC 9VA |
|
Optional feature |
24V power supply Control output2 |
|
Event outpot 3 DI1/DI1-3 |
|
|
RS485 communication 4-20mA Analog Output(AO) |
